(This review has been updated since it was originally published, reflecting new information and a fix to the primary concern voiced in the first draft.)

All hard drive enclosures are pretty much the same right? As long as they’re reliable, it’s really much more about the drive that you put inside, right? The new Zalman ZM-VE200 is trying to change that by offering a rather unique feature you’ll be hard pressed to find anywhere else: virtual drive functionality.

More Than Just a Hard Drive Enclosure

What exactly does this mean? Well, you can effectively save a whole series of ISO files on your drive of choice with the ZM-VE200 and the built-in USB controller will emulate an optical drive. In this way, you can carry around a whole spindle of CDs or DVDs in your pocket.

MEGATech Reviews   Zalman ZM VE200 External HDD Case and Virtual Drive   zalmandrive 5 500x269

This kind of feature can be very useful for regular notebooks and desktops, but it is perhaps even more important for netbooks and other devices that lack an optical drive. When I first heard about this product at CES, I was hopeful that it could be used as part of a home theater; alas, its target is the PC instead.

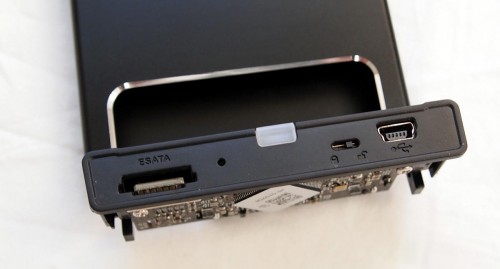

Aside from that, you’ll find an aluminum and polycarbonate body, a small backlit display, included USB and eSATA cables, mounting screws, and a tiny screwdriver for said screws, as well as a carrying case. Not surprisingly, you need to provide your own 2.5-inch SATA HDD (or SSD, should you feel so inclined). It should be noted, though, that you still need the USB cable for power when you are using the eSATA connection option.

Mounting Your Drive of Choice

MEGATech Reviews   Zalman ZM VE200 External HDD Case and Virtual Drive   zalmandrive 6 500x312

Getting your 2.5-inch drive of choice into the Zalman ZM-VE200 is very straightforward. It comes dismantled out of the box, so you just need to plunk the raw drive into the connector, slide it into the metal enclosure, and put in those two tiny screws. That’s pretty much it. Depending on your drive, you may or may not need to format it when you first connect it to your PC.

The speed and performance of this drive will highly depend on the drive you put inside. Officially, the USB 2.0 connection is good for up to 480Mbps, while the eSATA is good for data transfer rates of up to 3Gbps… but you already knew that.

The Virtual Drive Optical Replacement

MEGATech Reviews   Zalman ZM VE200 External HDD Case and Virtual Drive   zalmandrive 8 500x292

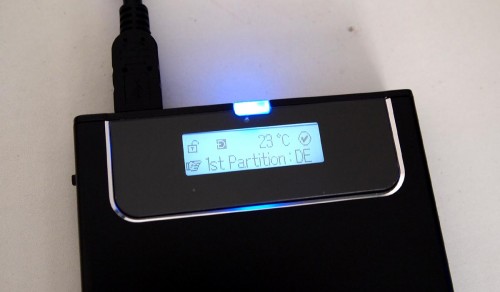

And this is what is really supposed to set this enclosure apart from all the rest. Along one side of the drive is a little rocker wheel (“jog switch”). If you hold it down when connecting the USB cable, you get HDD mode: that’s your typical external drive. If you hold it up, though, you get ODD mode: that’s an emulated optical drive. If you do nothing and plug it in, you get dual mode.

It’s important to note that all ISO files must be put specifically in the “_iso” folder on the device in order for the virtual drive to work. This is shown as a footnote in the user manual when it is something that should be described front and center.

Even so, I didn’t get the device to work as advertised. I’m supposed to be able to navigate through the folder structure of the drive to “mount” the appropriate ISO file, but this option never really came up. I only saw the partition on my drive and not the ability to navigate folders.

This really is too bad, since it’s such a good idea in theory. Perhaps I wasn’t using it the right way (in which case I’ll update this review as needed), but the provided documentation didn’t provide any further guidance. If I can’t figure it out, many other users won’t either.

Eventually, I got the device to allow me to browse through the folder structure to find the mountable ISO files. What was hanging it up before was that the hard drive I used still had an OEM partition on it and the Zalman ZM-VE200 was recognizing this first before the larger “main” partition. This “hiccup” was not at all described in the user manual; Zalman needs to provide much more thorough documentation in this regard.

After overcoming that concern, I could flip up and down through the available ISO files, clicking the scroll wheel inwards to mount one. Click inward again would unmount it. When I finally got it to start working, the interface worked perfectly. I just wish getting to that point was easier.

MEGATechie Driven or MEGATechie Broken Down?

MEGATech Reviews   Zalman ZM VE200 External HDD Case and Virtual Drive   zalmandrive 4 500x295

While much simpler products, like the ZM-NSP100 clip-on speakers offer good bang for your buck, I’m not sure I can provide the same kind of recommendation for the Zalman ZM-VE200 hard drive enclosure.

The build quality and USB controller appear to be just fine, but the main distinguishing feature — the virtual drive for mounting ISO files — didn’t work as advertised for me. If that gets cleared up, I might change my mind. If it doesn’t, I can’t recommend this $50 enclosure.

The Zalman ZM-VE200 isn’t the cheapest hard drive enclosure on the block with its $50 asking price. However, the main distinguishing feature of being able to act as a virtual drive for mounting ISO files really does set it apart from the crowd. This is going to be for a rather specialized market, but being able to have a large number of “virtual” CD-ROM and DVD-ROM files at your disposal is great. By default, the virtual drive shows up as a BD-ROM drive on your computer, so even if you don’t have a Blu-ray drive, you kind of do with the ZM-VE200.

Moving forward, my biggest recommendation to Zalman is to provide more comprehensive and clearer documentation to accompany their products. There’s no mention of having to have just one partition on the drive and the requirement for the _iso folder is only mentioned in passing in the remarkably short user guide. If someone like me can miss both of these important notes, I’m sure there are many others that would too. That said, this technology would be fantastic to apply to a pocketable virtual DVD drive for connecting to a TV, don’t you think? Zalman should make it happen.

About

Michael Kwan is a freelance writer who also happens to be a professional gadget geek. From smartphones to digital cameras, he's gotta get 'em all. Follow him on Twitter: @michaelkwan.

  • http://www.facebook.com/cyberfella Matt Bradley

    It’s worth mentioning the default firmware supports ntfs out of the box – i.e. unless the drive is formatted with an ntfs filesystem, the virtual cdrom drive folder _iso will not work.  ntfs is a good choice since both windows and linux (desktop distros at least) can read it these days and unlike fat32, it supports large files – necessary for storing bootable dvd isos.  If fat32 is absolutely necessary for universal compatibility though, you can download and install the firmware to make it work in fat32 mode instead of the ntfs mode that it ships with.  If I recall, this involves downloading the firmware file to the _iso folder and booting off it – but check the documentation on the zalman website.  It’s a simple procedure, but will limit the size of the iso that can be written to the disk.  Having converted mine to fat32, I might go back to ntfs firmware.  I have multiple storage devices so there’s always something formatted with fat32 kicking about if necessary.

  • Charles989989

    Darn, – it doesnt work with some bioses – so far hp dv9 laptop no like it on bootup – virtual cdrom is not seen correctly

    • http://profiles.google.com/saashraf Adil Ashraf

      Also doesnt boot up with Compaq Presario v6000′s

  • D00msay3r3

    How do I get one in the U.S.A. ?

  • Charles989989

    What about the iso performance? did you try to install xp, win7 to see how fast is it?
